| Product data sheet
Specifications |
| Green
Premium” |

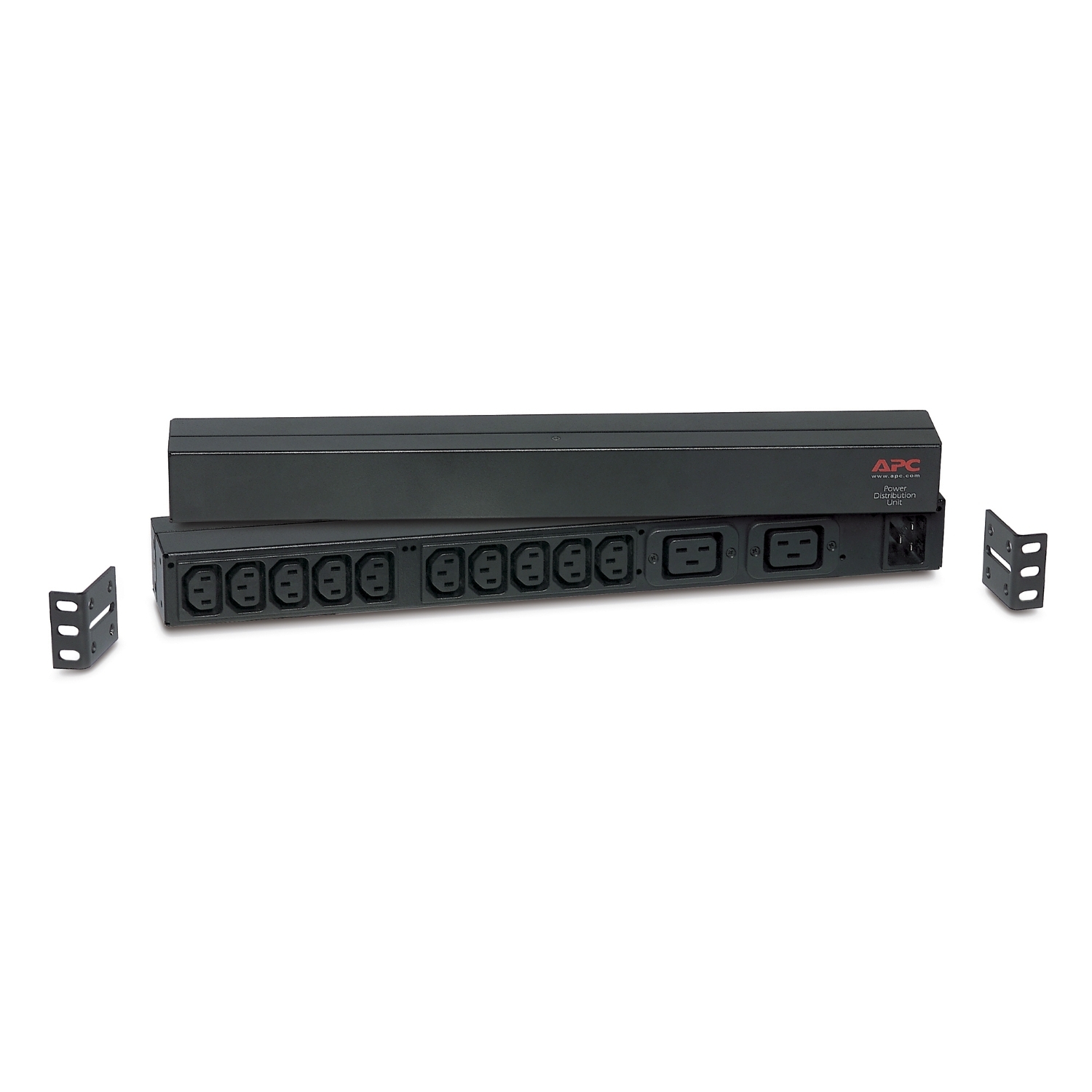

Rack PDU,Basic,1U, |
 |
16A,208&230V,(10)C13&(2)C19 |
| AP9559 |
|
| Overview |
|
|
| Lead time |
Usually in Stock |
| Main |
|
| Main Input Voltage |
120 V
208 V
230 V |
| PDU Type |
Basic |
| Main Output Voltage |
120 V
208 V
230 V |
| Input Connection Type |
IEC 60320 C20 |
| Number of rack unit |
1U |
| Cable length |
8.2 ft (2.50 m) |
| Number of cables |
|
| Provided Equipment |
User Manual
Rack Mounting brackets |
| Physical |
|
| Color |
Black |
| Height |
1.73 in (4.4 cm) |
| Width |
17.60 in (44.7 cm) |
| Depth |
2.24 in (5.7 cm) |
| Product Weight |
2.16 Ib(US)(0.98 kg) |
| Mounting Location |
Front
Rear |
| Mounting preference |
No preference |
| Mounting Mode |
Rack-mounted |
| Mounting position |
Horizontal |
| Input |
|
| Acceptable Input Voltage |
90.250 V |
| Max line current |
16 A |
| Input current limits |
16 A |
| Jul |
26,2023 |
|
Lifels On |
| Load Capacity |
3680 VA |
|
| Input Frequency 50/60 Hz |
| Output |
| Number of power socket outlets |
10 IEC 60320 C13 |
|
2 IEC 60320 C19 |
|
| Conformance |
| Product Certifications |
cUL Listed |
|
|
CE |
| UL Listed |
| VDE |
| Victoria |
| Environmental |
| Ambient Air Temperature for
Operation |
32…113 °F (0…45 °C) |
|
| Relative Humidity |
0…95 % |
| Operating altitude |
0…10000 ft |
| Ambient Air Temperature for
Storage |
-13…149 °F (-25…65 °C) |
| Storage Relative Humidity |
0…95 % |
| Storage altitude 0…50000 ft (0.00…15240.00 m) |
| Ordering and shipping details |
| GTIN
Packing Units |
731304123521 |
|
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.50 in (16.5 cm) |
| Package 1 Width |
19.02 in (48.3 cm) |
| Package 1 Length |
5.98 in (15.2 cm) |
| Package 1 Weight 5.19 lb(US) (2.355 kg) |
| Offer Sustainability |
| Sustainable offer status |
Green Premium product |
|
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is
known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| REACh Regulation |
REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Lead free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and
never end up in rubbish bins. |
| Optimized Energy Efficiency |
Energy efficient product |
| Take-back
Contractual warranty |
Take-back program available |
| Warranty 2 years repair or replace |
| 2 |
Jul 26, 2023 |
| Recommended replacement(s) |
| Jul 26, 2023 |
|
|
