Specifications
overview | Â |
Delivery date | Usually available from stock |
main information |  |
Main Input Voltage | 230 VAC 1 phase |
Other Input Voltage | 220 volts |
Main Output Voltage | 220/230/240 V AC 1 phase |
Other Output Voltage | 230 V |
Rated power [W] | 1800 W |
Rated power [VA] | 2000 VA |
Input Connection Type | IEC 60320 |

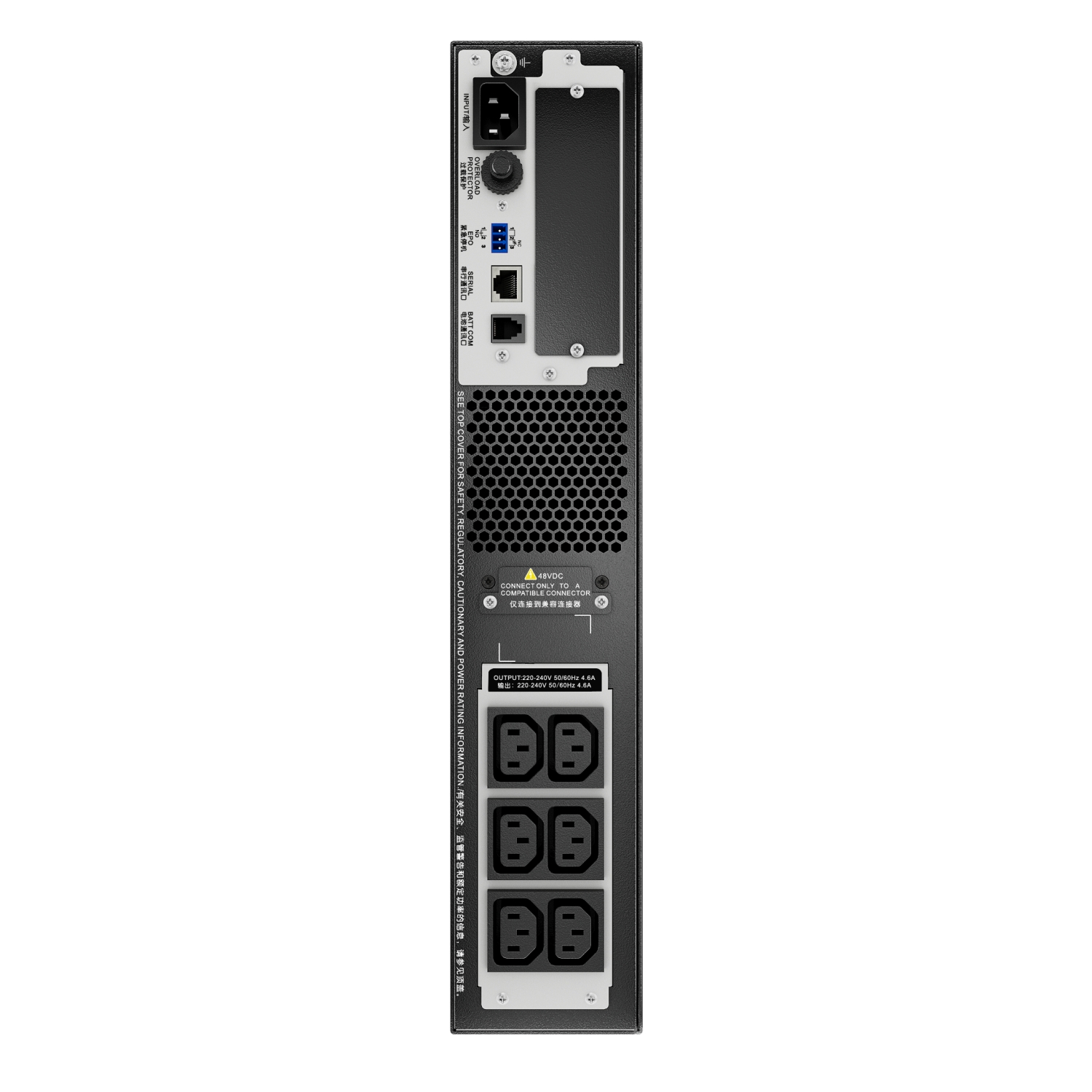

output connection type | 6 IEC 60320 C13 |
Number of rack units | 2U |
Included equipment | Smart-UPS RS232 signal cable |
Battery and run time |  |
Battery Type | Lead-acid batteries |
Empty battery slot | 0 |
Battery charging voltage (watts) | Rated |
Universal | Â |
topology | Double conversion online |
Maximum bypass input current | 9.1 A |
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Physical parameters |  |
color | Black |
high | 85 mm |
width | 438 mm |
depth | 530 mm |
net weight | 22.25 kg |
Installation location | Front |
Mounting preference | No preference |
Installation type | Rack-mounted with kit |
Two post mountable | 0 |
USBÂ compatible | No |
enter | Â |
Network frequency | 40..70 Hz+/-3 Hz auto-sensing |
Input voltage limit | 100..275 V |
Input total harmonic distortion | For full load,less than 10% |
Load power factor | From lead 0.9 to lag 0.9 |
Input Power Factor at Full Load | 0.99 |
output | Â |
Maximum configurable power in VA | 2000 VA |
Maximum configurable power (watts) | 1800 W 50/60 Hz +/-3 Hz synchronized with main frequency |
Output frequency (synchronized with main frequency) |  |
Waveform type | Sine wave |
Output voltage tolerance | +/-5 % |
Output voltage THD | <1%linear load and<3%non-linear load |
power | 89Â % |
conversion time | Typical value is 8 ms:Maximum value is 10 ms |
harmonic distortion | Less than 2% |
Crest coefficient | 3:1 |
Bypass type | Internal bypass (automatic and manual) |
Other parameters | Can be set to 220,230 or 240 output voltage |
conformity | Â |
certified product | CE |
Standards compliant | EN/IEC 62040-1:2017 |
environment | Â |
operating temperature | 0.40 ℃ |
Relative humidity | 0…95 %non-condensing |
Working altitude | 0..6600 ft |
Storage ambient temperature | -15..45 ℃ |
Storage relative humidity | 0…95 %non-condensing |
Storage height | 0.00…15240.00 m |
sound leve | 55 dB |
IP protection level | IP20 |
Communications    and    Manageme | nt |
Pre-installed SmartSlotTm card | Network management card Alarm when on battery:distinctive low battery alarm:overload continuous |
alarm | tone alarm |
emergency shutdown | Yes |
packaging unit |  |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 230 mm |
Package 1 Width | 565 mm |
Package 1 Length | 700 mm |
Package 1 Weight | 25.25 kg |
Contract warranty |  |
Warranty | 2 years repair or replace |
