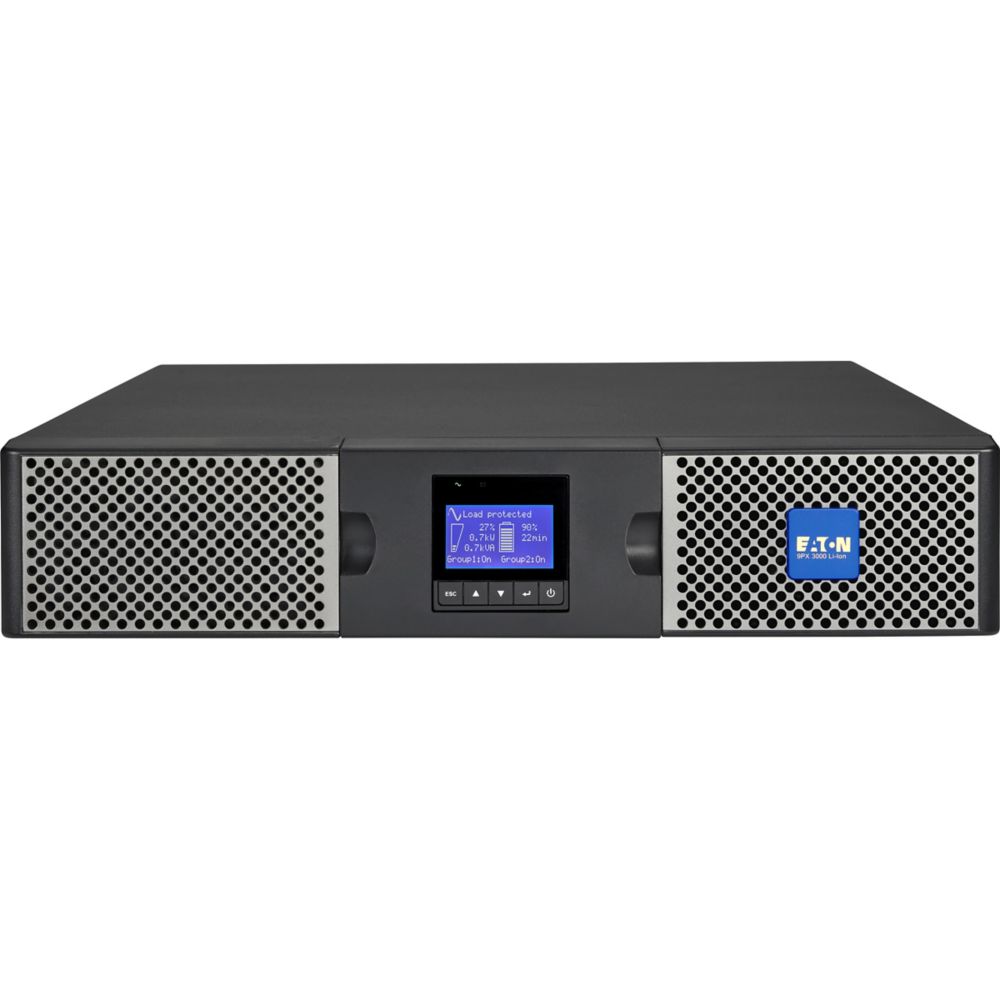

| Eaton 9PX3000IRT2U-L |
| Catalog Number: 9PX3000IRT2U-L |
|
| Eaton 9PX UPS, Lithium, 3000 VA, 3000 W, Input: C20, Outputs:
(8) C13, (2) C19, Rack/tower, 2U |
| General specifications |
|
 |
    Product Name |
|
Catalog Number |
| Â Â Â Â Eaton 9PX UPS |
9PX3000IRT2U-L |
| Â Â Â Â Model Code |
UPC |
| Â Â Â Â Eaton 9PX 3000i RT2U Li-Ion |
743172105325 |
| Â Â Â Â Product Length/Depth |
|
Product Height |
| Â Â Â Â 605 mm |
86.5 mm |
| Â Â Â Â Product Width |
Product Weight |
| Â Â Â Â 440 mm |
22.8 kg |
| Â Â Â Â Warranty |
Compliances |
| Â Â Â Â 2 year |
CE Marked |
| Battery |
Electrical output |
|
| Battery type
Lithium-ion |
|
Receptacle |
| (8) C13, (2) C19 |
| Runtime graph
View runtime graph |
Voltage |
| 230V |
| Battery replacement |
Wattage |
| Hot-swappable internal batteries and extended battery modules
(EBMs) |
2400 W |
| Output power factor |
| Battery management |
1 |
| Lithium-ion batteries with |
Output voltage range |
| battery management system
Automatic recognition of
external battery units |
|
200/208/220/230/240 V +/- 1% |
| Output waveform |
|
Sine wave |
| Extended battery capability
Yes |
|
Output nominal voltage |
| 230V default (200/208/220/230/240V) |
|
Voltage distortion output (linear load) – max |
| 3 |
| Feed type |
| 1 |
| Topology |
| Online/Double-conversion |
| VA rating |
| 3000 VA |
| Electrical input |
Communications |
|
| Input connection |
Includes network card |
| C20 |
No |
| Input nominal voltage |
Communication |
| 230V default (200/208/220/230/240V) |
USB port (HID compliant) |
| Nominal frequency |
Serial port (RS232) |
| 50/60 Hz |
Mini terminal block for |
|
remote On/Off |
| Input power factor |
Mini-terminal block for |
| >.99 |
remote power off |
| Input cord length |
Mini-terminal block for |
| 1.8m |
output relay |
|
Dry contacts (3 outputs, 1 |
| Input voltage range |
input, optocoupler, DB9) |
| 176-276 V (100-276 V with derating) |
| Input frequency range |
|
Ethernet interface |
|
| No |
| 40-70 Hz |
|
User interface |
| Multilingual graphical LCD display |
| Potential free switch contact |
| Yes |
| Expansion slots |
| One slot for optional communication card
Software compatibility |
| Eaton Intelligent Power Manager, Eaton Intelligent Power
Protector |
| Type of interface |
| Other |
| Environmental |
Additional specifications |
|
| Altitude |
Construction type |
|
| 3000 m |
482.6 mm (19 inch) device |
| Noise level |
Package contents |
|
| <40 dB at 1 meter |
|
UPS |
| Temperature range |
Input cable |
|
| 0° to 40°C (32° to 104°F) |
(2) IEC-IEC output cables |
|
USB cable |
|
| Relative humidity |
Serial cable |
| 0-96% non-condensing |
(2) brackets for 19’ mounting |
| (2) Rack-mounting kit |
| (2) Supports for tower |
| mounting |
| Cable locking system |
| Safety instructions |
| Quickstart guide |
|
| Phase (output) |
| 1 |
| Internal bypass |
| Yes |
| Auto shutdown function |
| Yes |
| Color |
| Black/silver |
|
|
|
